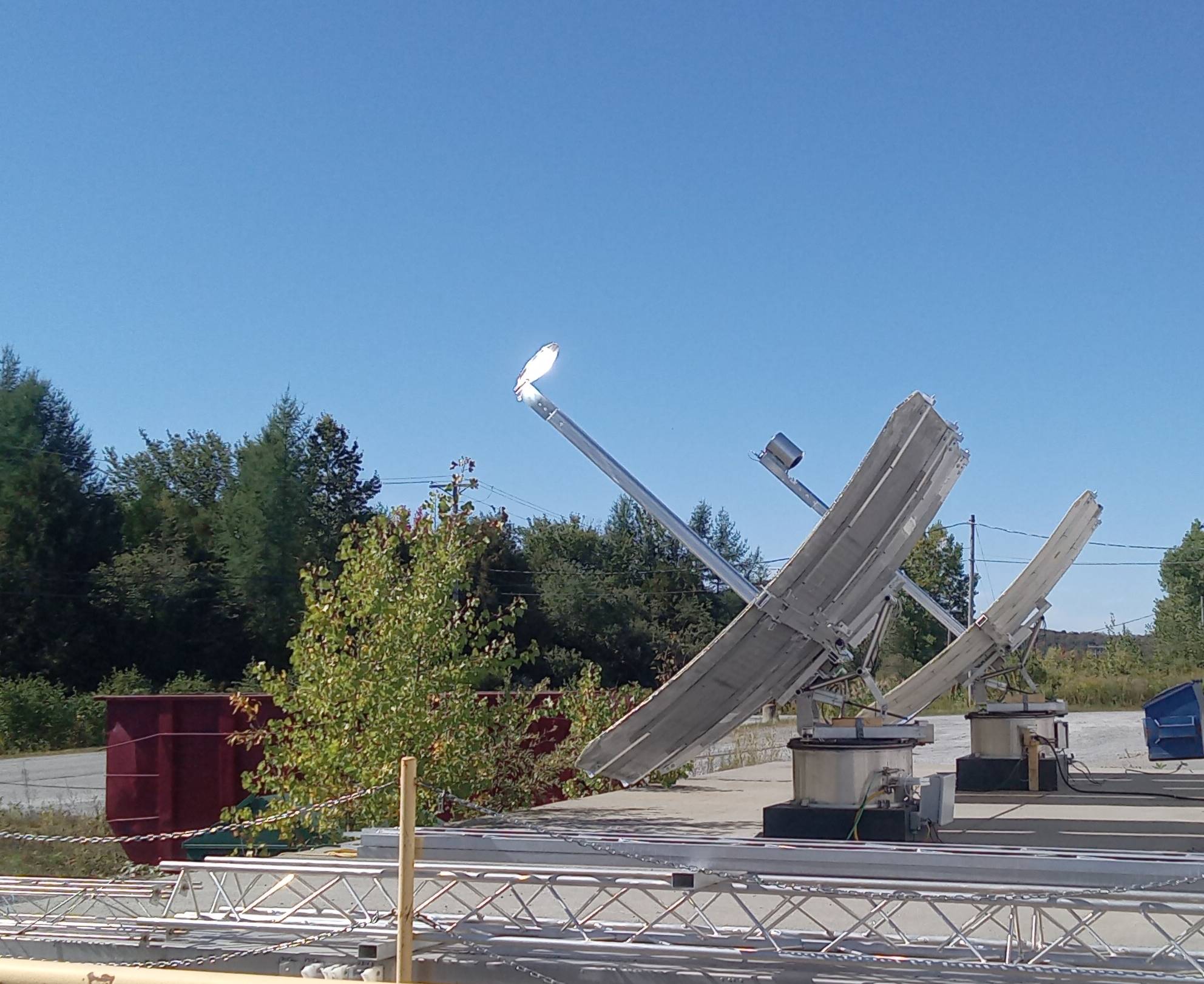

Ground based dual axis concentrating system

This powerful industrial solar heater design relies on high-precision concentrators mounted on dual-axis trackers, following the sun’s path throughout the entire day — both vertically and horizontally. This spherical tracking ensures that the system captures the maximum possible solar energy at every moment, dramatically boosting efficiency even at high thermal loads.

One of the major advantages of this technology is its versatility. Unlike traditional solar fields that require flat, uniform terrain, our concentrators can be deployed on uneven, odd-shaped land, opening new possibilities for sites that would otherwise be considered unsuitable.

In this design, each solar unit acts as an independent, autonomous thermal plant. Together, they form a cohesive, scalable heat production system. This modular approach means you can start small and expand over time — adapting capacity exactly to your needs, at your pace.

  • High temperature needs
  • Small installations that will grow over time
  • Unleveled ground
  • Oddly shaped terrain
  • Remote locations

Available media

View gallery
S50 concentrator render

S50 series

Versatile, high-precision dual-axis concentrators engineered for industrial heat.

Aperture Area
13.75 m²
Nominal Output
8.5 kWth @ 950 W/m²
Operating Temp.
65 - 260 °C
Tracking Accuracy
0.25 ° / 17.5 mrad

System Components

Each concentrator operates as a self-contained thermal plant with an integrated control system, sensors, and pump. Installation is streamlined — two people and a basic ratchet tool can assemble a unit quickly onsite.

Exploded view
  1. High temperature receiver
  2. Mast
  3. High-reflectance parabolic mirror
  4. Declination tracking mechanism
  5. Azimuth tracking mechanism
  6. Highly stable base
  7. Control system
  8. Integrated metering pump

Technical Specifications

Optical & Geometric

  • Mean aperture diameter: 3.85 m
  • Aperture area: 13.75 m²
  • Concentration ratio: 1375 : 1
  • Focal length: 2.95 m
  • Focal spot / intercept: 10 cm / 0.95 %
  • Optical efficiency: 83 %
  • Acceptance angle: 17.5 mrad / 2°
  • Tracking precision (req.): 4.35 mrad / 0.25°

Thermal & Energy

  • Nominal output: 8.5 kWth @ 950 W/m²
  • Operating temperature: 25 – 260 °C
  • Annual yield (at DNI of 1500 KWh/yr): 13.4 MWh_th/yr

Receiver / Absorber

  • Type: Surface
  • HTF: Water / Glycol & Water / Oil
  • Connections: 0.5 in, 150 PSI
  • Dimensions & weight: 400 mm, 2 kg

Tracking System

  • Type: [Alt‑Az ]
  • Drive: Stepper
  • Accuracy: 0.25 ° / mrad
  • Control: Ephemeris
  • Power consumption: 48 W avg / 990 Wh/day
  • Stow position & logic: Vertical / Wind‑triggered / DNI-triggered

Structural & Mechanical

  • Dimensions (H×W×D): L3 × W4.65 × H4.25 m
  • Structure material: Aluminum / Mirror Structure: Composite
  • Mirror material reflectivity: Al, 92%
  • Mirror facets: 4
  • Total weight: 250 kg
  • Mounting system: Foundation
  • Wind load: Op 8 m/s; Survival 31 m/s

Electrical & Control

  • Power supply: 120-240, AC
  • Consumption: Peak 200 W / AVG 48 W
  • Control unit: µC
  • Communication: Wi-Fi / MQTT
  • Safety: Low Azim Limit switch, Hard stop, E‑stop
  • Sensors: Azimuth: Encoder, Elevation: Accelerometer, temperature: RTD

Installation & Maintenance

  • Foundation: Concrete dims / loads
  • Assembly: Prefab / On‑site
  • Transport: Containerization / Max piece size
  • Cleaning: Manual / Automated / Waterless
  • Maintenance cycle: 12 months / 2500 hours
  • Design lifetime: 20 years

Environment

  • Operating conditions: -40 °C to +60 °C; humidity 100 %
  • Corrosion resistance: Aluminium,

Guarantees & Warranty

  • Guaranteed optical efficiency: 81 %
  • Guaranteed thermal output: 8.25 kWth @ 950 W/m²
  • Warranty (standard): Structure 1 y ; Mirrors 1 y ; Receiver 1 y ; Control 1 y
