Evacuated tubes cogeneration system
Rackam's low-temperature cogeneration system seamlessly integrates two advanced technologies. High-efficiency evacuated tube collectors capture abundant solar thermal energy, delivering a steady supply of medium-temperature fluid. This energy is then enhanced by heat pumps, which elevate the temperature to a higher, more usable level with minimal electricity consumption.
1. Parabolic throughs | 3. Pumping module | 5. Storage tank |
2. Solar dryer | 4. Piping network |
Central control system
Realtime monitoring
Superior energy efficiency
All season reliability
Scalable and modular
Low maintenance

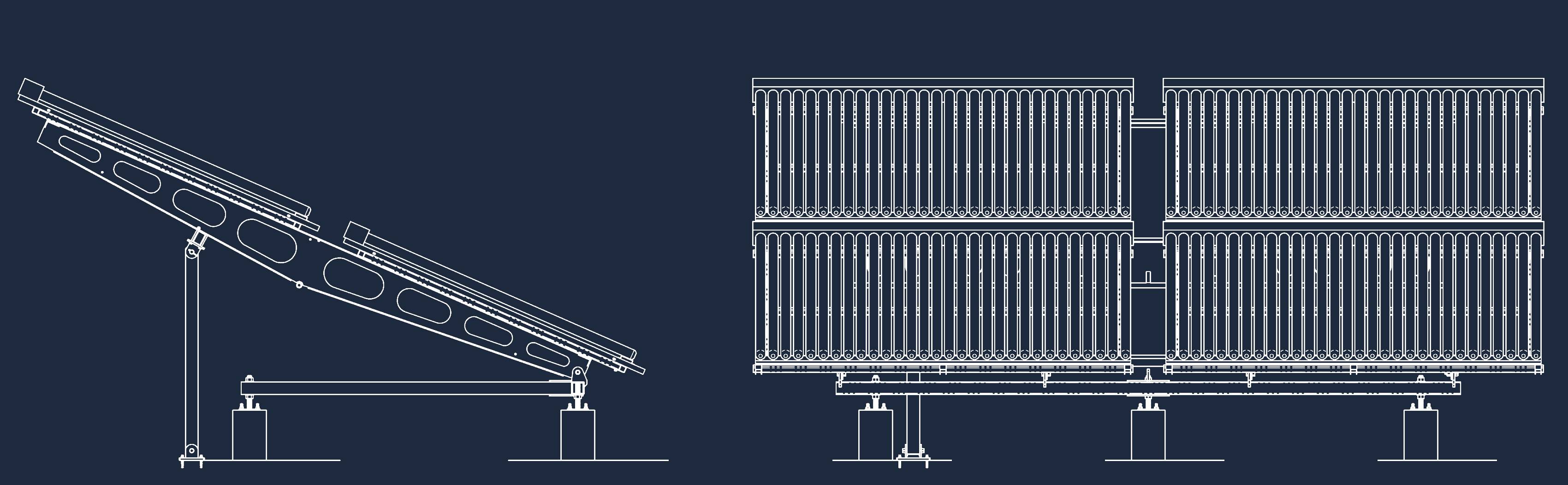

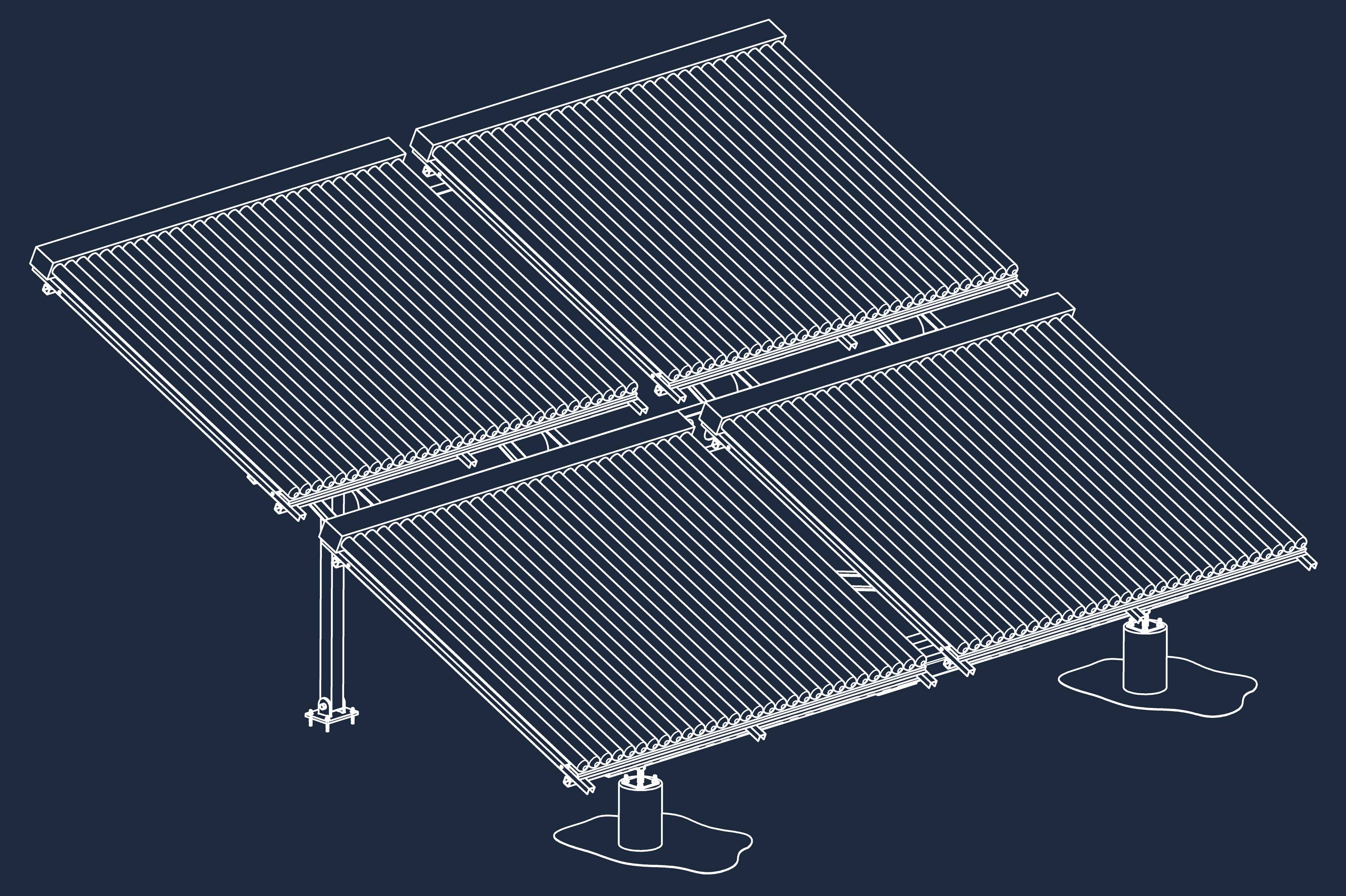

Evacuated tubes, the right choice for harsh winter climates
An evacuated tube collector is made of multiple glass tubes (kind of like long thermoses) that absorb solar energy. Each tube has a vacuum (an evacuated space) between two layers of glass, which greatly reduces heat loss.
- Sunlight hits the tube → an inner coating absorbs it and turns it into heat
- Heat transfers to a fluid (like water or a heat transfer liquid) inside a pipe that runs through or alongside the tubes
- Vacuum insulationprevents heat from escaping into the air → so even in winter or on cloudy days, they stay efficient.
Specifications
