Rooftop single axis concentrating system
Parabolic trough solar fields offer excellent specific heat output and a strong yield per square meter of roof surface. Rackam’s solar rooftops utilize the S10 series of parabolic troughs—robust, single-axis concentrators designed for durability, minimal maintenance, and ease of installation. These collectors are optimized to deliver consistent thermal energy performance while keeping operational costs low.

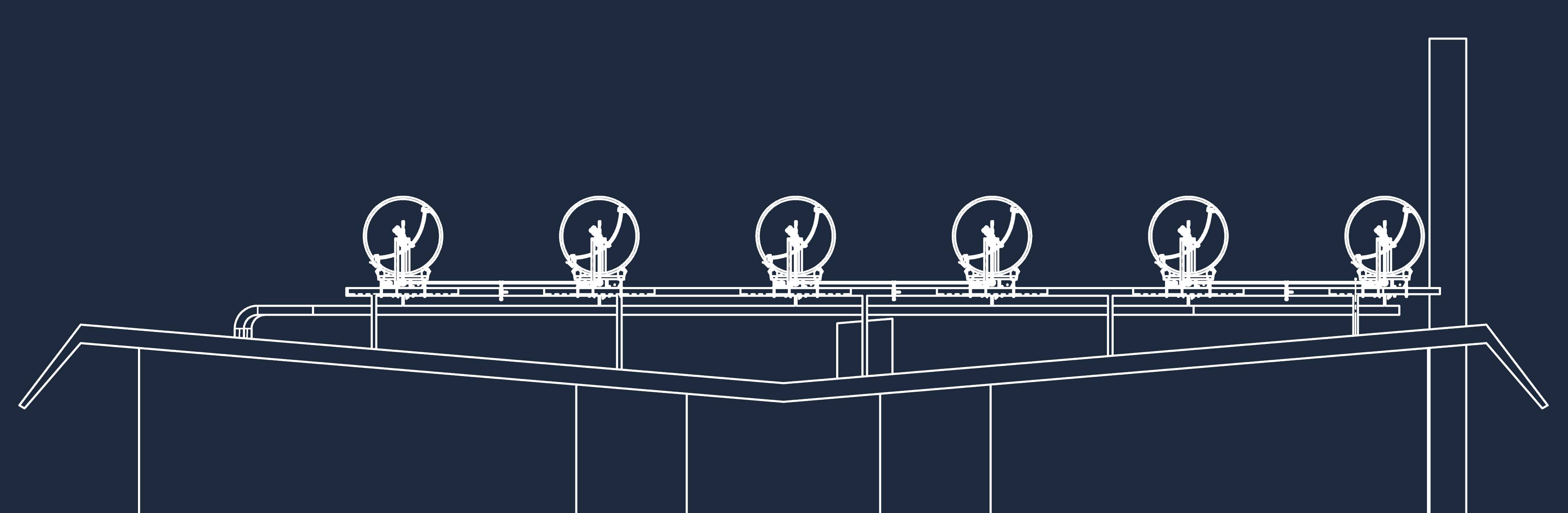

A Rackam solar field consists of multiple rows of S10 concentrators arranged in a single-axis configuration. A distributing manifold at one end of the field directs a heat transfer fluid through the collectors, where it is heated by concentrated sunlight. The heated fluid is then gathered by a collecting manifold at the opposite end and sent to a heat exchanger. There, it transfers its thermal energy to the industrial process loop. A fully instrumented pumping module ensures continuous fluid circulation and real-time monitoring of system parameters, supporting efficient and reliable operation.
Central control system
Realtime monitoring
Main pumping module
The S10 series, robust and durable parabolic through designed for rooftops
Main components
Specifications
Features
- No onsite welding
- Minimal roof anchoring system
- Module by module installation
- Easy alignement
